Πλεγμένο Sleeving, ζωηρόχρωμη ζωή

Αρχική Σελίδα ΠροϊόνταΗλεκτρικό πλεγμένο Sleeving

Στεγανοποιήστε 3~100mm PET ηλεκτρικό πλεγμένο Sleeving

Στεγανοποιήστε 3~100mm PET ηλεκτρικό πλεγμένο Sleeving

Στεγανοποιήστε 3~100mm PET ηλεκτρικό πλεγμένο Sleeving
Waterproof 3~100mm PET Electrical Braided Sleeving
Στεγανοποιήστε 3~100mm PET ηλεκτρικό πλεγμένο Sleeving
Λεπτομέρειες:
Τόπος καταγωγής: Shenzhen της Κίνας
Μάρκα: Huiyunhai
Πιστοποίηση: UL, RoHS, REACH
Αριθμό μοντέλου: HYH
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: Διαπραγματεύσιμος
Τιμή: Negotiable
Συσκευασία λεπτομέρειες: τυποποιημένο χαρτοκιβώτιο εξαγωγής
Δυνατότητα προσφοράς: 500.000 μέτρα το μήνα
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Όνομα: Pet πλεγμένο καλώδιο Sleeving Χρώμα: κόκκινο και μαύρο πέρασμα
Λειτουργία: Προστασία καλωδίων Χρονική ανοχή: 5 ημέρες
Χαρακτηριστικό γνώρισμα: Πυρίμαχος Δείγμα: ελεύθερος
Υψηλό φως:

Εκτάσιμο μανίκι καλωδίων της PET

,

Pet πλεγμένο καλώδιο Sleeving

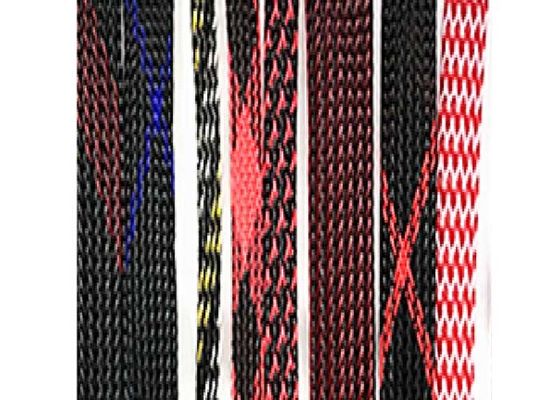

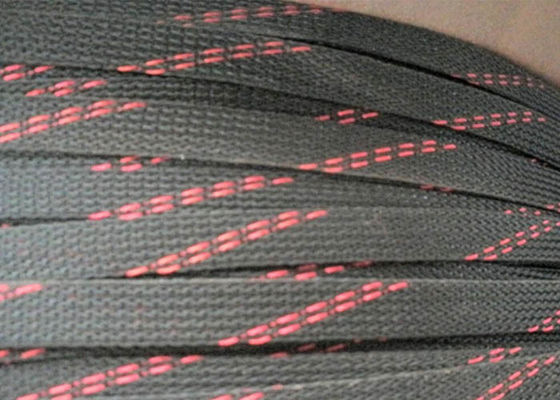

3mm~100mm Colorful PET Braided Expandable Cable Sleeve





Premium Cable Management:Crafted with durable & flexible neoprene, not easy to deform, dustproof, waterproof , breathable and washable. Protect multiple cables without tearing while protecting cords from foot traffic & chewing pets.



Polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors. Totally expanded the sleeving can reach at least 1.5 times the initial dimension.



Features of PET Braided Expandable Cable Sleeve


Materia l: PET
Diameter: custom
Length: custom
Expanding Ratio: 200%
Color: colorful
Melting point: 230 °C ± 5
Tinting strength: 100 ± 5 °C
Flame Retardant: yes

Flammability class: UL94VO/VW-1/V2.
Temperature endurance: -50 °C~ +150 °C
PET sleeve quality: UL,SGS,Rohs,Reach,etc.



PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.



Application of PET cable sleeve



Braided sleeves are widely used in computer power cord, audio-video, automotive, aviation, wire and cable industries. It has protect and beautify the role. Its unique mesh characteristics but also has good ventilation, and a thermal diffusion function in a timely manner.Wrap wires, protect the wires from erosion and moisture. And beautify the wires.





Product feacture of PET Braided Expandable Cable Sleeve



The braided sleeve is made of environmentally-friendly PET silk, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify.


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.





Dimensions of PET Braided Expandable Cable Sleeve



Στεγανοποιήστε 3~100mm PET ηλεκτρικό πλεγμένο Sleeving 0



Notes:



1.  Nominal size indicates the flat width.

2.  The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3.  This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4.  Special packing, sizes, and colors can be supplied upon request.

5.  All numerical data are average or typical values, not including customized sizes.





















Στεγανοποιήστε 3~100mm PET ηλεκτρικό πλεγμένο Sleeving 1

































Στεγανοποιήστε 3~100mm PET ηλεκτρικό πλεγμένο Sleeving 2
